Narzynki
Cechy - opis właściwości
– trwałość i odporność na zużycie
– wykonane z wysokiej jakości stali
– ostrza odporne na ciężkie warunki skrawania
– efektywne odprowadzanie naciętego materiału
– wysoka jakość powierzchni po obróbce
– do nacinania i kalibrowania gwintów zewnętrznych
– obróbka wysokowydajna i bardzo dokładna
Atrybuty - parametry techniczne
– typ narzynek: maszynowe, ręczne
– rodzaj gwintu: metryczny (M), metryczny drobnozwojny (MF), rurowy walcowy (G)
– rozmiar gwintu: M2÷M30, G1/8÷G2
– znormalizowane wymiary
– kierunek gwintu: RH
– ilość ostrzy: 3-7
– nakrój: 1,5P (HSS), 2P (HSSE INOX)
– tolerancja: 6g (M, MF), A (G)
– materiał narzędzia: HSS, HSSE INOX
– wykonanie wg DIN 22 568 (M, MF), DIN 24 231 (G)
produkty on-line
produkty stacjonarnie
Więcej informacji o dostępnym asortymencie
| MATERIAŁ NARZĘDZIA |
STAL (P) |
STAL NIERDZEWNA (M) |
ŻELIWO (K) |
METALE NIEŻELAZNE (N) |
SUPERSTOPY (S) |
STAL HARTOWANA (H) |
|---|---|---|---|---|---|---|
| HSS | ● | ● | ● | |||
| HSSE | ● | ● | ● | ● |
| IDENTYFIKATOR PRODUKTU |
ROZMIAR GWINTU |
ZWOJE NA CAL TPI |
SKOK GWINTU P |

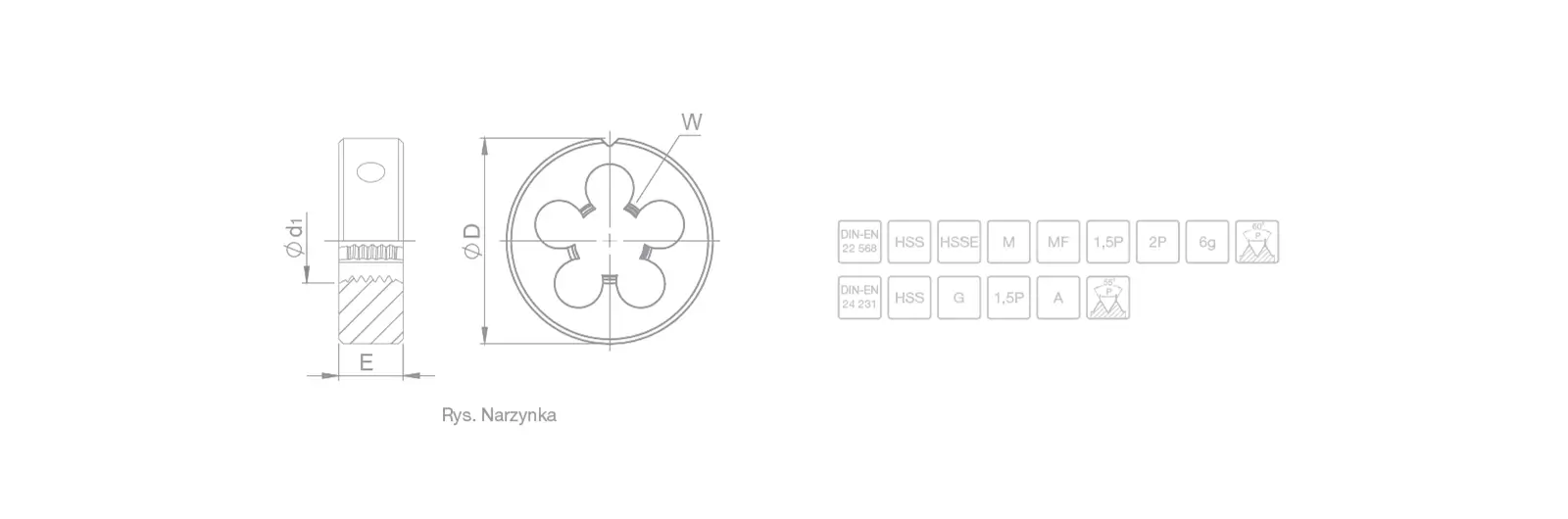

ŚREDNICA ZEWNĘTRZNA NARZYNKI ØD |
GRUBOŚĆ NARZYNKI E |
ROZMIAR OPRAWKI S |
ŚREDNICA OTWORU WSTĘPNEGO Ød |
NORMA | KIERUNEK GWINTU |
MATERIAŁ | TOLERANCJA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KOD: ELT-N.2020020 EAN: 5907324007249 |
M2 | - | 0.4 | 16 | 5 | 3 | 1.93 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020025 EAN: 5907324007256 |
M2.5 | - | 0.45 | 16 | 5 | 3 | 2.43 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020030 EAN: 5907324007263 |
M3 | - | 0.5 | 20 | 5 | 3 | 2.92 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020040 EAN: 5907324007270 |
M4 | - | 0.7 | 20 | 5 | 3 | 3.91 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020050 EAN: 5907324007287 |
M5 | - | 0.8 | 20 | 7 | 4 | 5.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020060 EAN: 5907324007294 |
M6 | - | 1 | 20 | 7 | 4 | 5.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020070 EAN: 5907324007300 |
M7 | - | 1 | 25 | 9 | 4 | 6.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020080 EAN: 5907324007317 |
M8 | - | 1.25 | 25 | 9 | 4 | 7.87 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020090 EAN: 5907324007331 |
M9 | - | 1.25 | 25 | 9 | 4 | 8.87 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020100 EAN: 5907324007348 |
M10 | - | 1.5 | 30 | 11 | 4 | 9.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020120 EAN: 5907324007379 |
M12 | - | 1.75 | 38 | 14 | 4 | 11.83 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020140 EAN: 5907324007416 |
M14 | - | 2 | 38 | 14 | 5 | 13.82 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020160 EAN: 5907324007454 |
M16 | - | 2 | 45 | 18 | 5 | 15.82 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020180 EAN: 5907324007485 |
M18 | - | 2.5 | 45 | 18 | 5 | 17.79 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020200 EAN: 5907324007508 |
M20 | - | 2.5 | 45 | 18 | 6 | 19.79 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020220 EAN: 5907324007539 |
M22 | - | 2.5 | 55 | 22 | 5 | 21.79 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020240 EAN: 5907324007553 |
M24 | - | 3 | 55 | 22 | 6 | 23.76 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020270 EAN: 5907324007584 |
M27 | - | 3 | 65 | 25 | 6 | 26.76 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020300 EAN: 5907324007614 |
M30 | - | 3.5 | 65 | 25 | 7 | 29.73 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2030040 EAN: 5907324007669 |
M4 | - | 0.7 | 20 | 7 | 4 | 3.91 | DIN-22568 | RH | HSSE | 6g |
| KOD: ELT-N.2020050 EAN: 5907324007676 |
M5 | - | 0.8 | 20 | 7 | 4 | 4.9 | DIN-22568 | RH | HSSE | 6g |
| KOD: ELT-N.2030060 EAN: 5907324007683 |
M6 | - | 1 | 20 | 7 | 4 | 5.88 | DIN-22568 | RH | HSSE | 6g |
| KOD: ELT-N.2030080 EAN: 5907324007690 |
M8 | - | 1.25 | 25 | 9 | 5 | 7.87 | DIN-22568 | RH | HSSE | 6g |
| KOD: ELT-N.2030100 EAN: 5907324007706 |
M10 | - | 1.5 | 30 | 11 | 5 | 9.85 | DIN-22568 | RH | HSSE | 6g |
| KOD: ELT-N.2030120 EAN: 5907324007713 |
M12 | - | 1.75 | 38 | 14 | 5 | 11.83 | DIN-22568 | RH | HSSE | 6g |
| KOD: ELT-N.2030160 EAN: 5907324007720 |
M16 | - | 2 | 45 | 18 | 5 | 15.82 | DIN-22568 | RH | HSSE | 6g |
| KOD: ELT-N.2030200 EAN: 5907324007737 |
M20 | - | 2.5 | 45 | 18 | 5 | 19.79 | DIN-22568 | RH | HSSE | 6g |
| KOD: ELT-N.2020081 EAN: 5907324007324 |
M8x1 | - | 1 | 25 | 9 | 4 | 7.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020101 EAN: 5907324007355 |
M10x1 | - | 1 | 30 | 11 | 4 | 9.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020102 EAN: 5907324007362 |
M10x1.25 | - | 1.25 | 30 | 11 | 4 | 11.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020121 EAN: 5907324007386 |
M12x1 | - | 1 | 38 | 10 | 4 | 11.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020122 EAN: 5907324007393 |
M12x1.25 | - | 1.25 | 38 | 10 | 4 | 11.86 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020123 EAN: 5907324007409 |
M12x1.5 | - | 1.5 | 38 | 10 | 4 | 11.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020141 EAN: 5907324007423 |
M14x1 | - | 1 | 38 | 10 | 5 | 13.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020142 EAN: 5907324007430 |
M14x1.25 | - | 1.25 | 38 | 10 | 5 | 13.86 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020143 EAN: 5907324007447 |
M14x1.5 | - | 1.5 | 38 | 10 | 5 | 13.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020161 EAN: 5907324007461 |
M16x1 | - | 1 | 45 | 14 | 5 | 15.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020163 EAN: 5907324007478 |
M16x1.5 | - | 1.5 | 45 | 14 | 5 | 15.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020183 EAN: 5907324007492 |
M18x1.5 | - | 1.5 | 45 | 14 | 5 | 17.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020201 EAN: 5907324007515 |
M20x1 | - | 1 | 45 | 14 | 6 | 19.88 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020203 EAN: 5907324007522 |
M20x1.5 | - | 1.5 | 45 | 14 | 6 | 19.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020223 EAN: 5907324007546 |
M22x1.5 | - | 1.5 | 55 | 16 | 6 | 21.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020243 EAN: 5907324007560 |
M24x1.5 | - | 1.5 | 55 | 16 | 6 | 23.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020244 EAN: 5907324007577 |
M24x2 | - | 2 | 55 | 16 | 6 | 23.82 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020273 EAN: 5907324007591 |
M27x1.5 | - | 1.5 | 65 | 18 | 6 | 26.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020274 EAN: 5907324007607 |
M27x2 | - | 2 | 65 | 18 | 6 | 26.82 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020301 EAN: 5907324007621 |
M30x1.5 | - | 1.5 | 65 | 18 | 6 | 29.85 | DIN-22568 | LH | HSS | 6g |
| KOD: ELT-N.2020303 EAN: 5907324007638 |
M30x1.5 | - | 1.5 | 65 | 18 | 6 | 29.85 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020304 EAN: 5907324007645 |
M30x2 | - | 2 | 65 | 18 | 6 | 29.82 | DIN-22568 | RH | HSS | 6g |
| KOD: ELT-N.2020383 EAN: 5907324007652 |
M38x1.5 | - | 1.5 | 75 | 20 | 7 | 37.85 | DIN-22568 | LH | HSS | 6g |
| KOD: ELT-N.2010100 EAN: 5907324007140 |
G 1'' | 11 | 2.309 | 65 | 18 | 8 | 33.07 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010112 EAN: 5907324007157 |
G 1 1/2'' | 11 | 2.309 | 90 | 22 | 8 | 47.62 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010114 EAN: 5907324007164 |
G 1 1/4'' | 11 | 2.309 | 75 | 20 | 9 | 41.73 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010120 EAN: 5907324007171 |
G 1/2'' | 14 | 1.814 | 45 | 14 | 6 | 20.81 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010140 EAN: 5907324007188 |
G 1/4'' | 19 | 1.337 | 38 | 10 | 5 | 13.03 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010180 EAN: 5907324007195 |
G 1/8'' | 28 | 0.907 | 30 | 11 | 4 | 9.62 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010200 EAN: 5907324007201 |
G 2'' | 11 | 2.309 | 105 | 22 | 8 | 59.43 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010340 EAN: 5907324007218 |
G 3/4'' | 14 | 1.814 | 55 | 16 | 6 | 26.3 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010380 EAN: 5907324007225 |
G 3/8'' | 19 | 1.337 | 45 | 14 | 5 | 16.54 | DIN-24231 | RH | HSS | A |
| KOD: ELT-N.2010580 EAN: 5907324007232 |
G 5/8'' | 14 | 1.814 | 55 | 16 | 6 | 22.77 | DIN-24231 | RH | HSS | A |
