Wiertła monolityczne VHM
Cechy - opis właściwości
– niezwykłe trwałe i bardzo wydajne
– wysoka odporność na zużycie
– uniwersalna geometria wiertła
– ekonomiczna obróbka szerokiej gamy materiałów
Atrybuty - parametry techniczne
– typ wierteł: monolityczne
– zakres średnic: Ø 2,5÷12,0, 3,0÷18,0 (5xD IK)
– długość robocza: 3xD, 5xD, 5xD IK
– kat wierzchołkowy: 140°
– materiał narzędzia: węglik spiekany VHM
– powłoka na części skrawającej: AlTiN
– rodzaj chwytu: walcowy wg DIN 6537-HA
produkty on-line
produkty stacjonarnie
Więcej informacji o dostępnym asortymencie

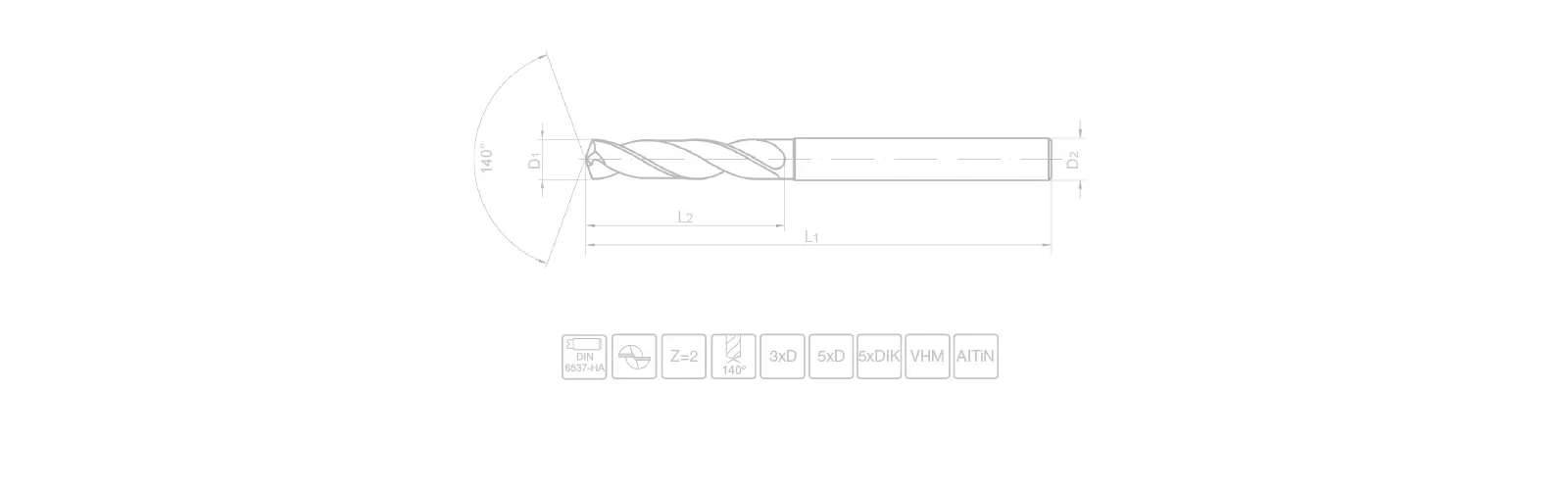

Rys. Wiertło monolityczne VHM
| STAL (P) |
STAL NIERDZEWNA (M) |
ŻELIWO (K) |
METALE NIEŻELAZNE (N) |
SUPERSTOPY (S) |
|---|---|---|---|---|
| ● | ● | ● | ● | ● |
| IDENTYFIKATOR PRODUKTU |
ŚREDNICA WIERTŁA D1 (mm) |
ŚREDNICA CHWYTU D2 (mm) |
DŁUGOŚĆ CAŁKOWITA L1 (mm) |
DŁUGOŚĆ ROBOCZA L2 (mm) |
MATERIAŁ | POWŁOKA | CHŁODZENIE WEWNĘTRZNE |
MAKSYMALNA GŁĘBOKOŚĆ WIERCENIA |
|---|---|---|---|---|---|---|---|---|
| KOD: ELT-W.6040250X EAN: 5907324000554 |
2.5 | 6 | 62 | 20 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040300X EAN: 5907324005092 |
3 | 6 | 62 | 20 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040320X EAN: 5907324005108 |
3.2 | 6 | 62 | 20 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040330X EAN: 5907324005115 |
3.3 | 6 | 62 | 20 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040350X EAN: 5907324005122 |
3.5 | 6 | 62 | 20 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040400X EAN: 5907324005139 |
4 | 6 | 66 | 24 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040420X EAN: 5907324005146 |
4.2 | 6 | 66 | 24 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040500X EAN: 5907324005153 |
5 | 6 | 66 | 28 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040510X EAN: 5907324005160 |
5.1 | 6 | 66 | 24 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040520X EAN: 5907324005177 |
5.2 | 6 | 66 | 28 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040550X EAN: 5907324005184 |
5.5 | 6 | 66 | 28 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040600X EAN: 5907324005191 |
6 | 6 | 66 | 28 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040650X EAN: 5907324013806 |
6.5 | 8 | 79 | 34 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040680X EAN: 5907324005207 |
6.8 | 8 | 79 | 34 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040700X EAN: 5907324005214 |
7 | 8 | 79 | 34 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040750X EAN: 5907324005221 |
7.5 | 8 | 79 | 41 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040800X EAN: 5907324005238 |
8 | 8 | 79 | 41 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040850X EAN: 5907324005245 |
8.5 | 10 | 89 | 47 | VHM | AT | - | 3xD |
| KOD: ELT-W.6040900X EAN: 5907324005252 |
9 | 10 | 89 | 47 | VHM | AT | - | 3xD |
| KOD: ELT-W.6041000X EAN: 5907324005269 |
10 | 10 | 89 | 47 | VHM | AT | - | 3xD |
| KOD: ELT-W.6041020X EAN: 5907324005276 |
10.2 | 12 | 102 | 55 | VHM | AT | - | 3xD |
| KOD: ELT-W.6041050X EAN: 5907324013820 |
10.5 | 12 | 102 | 55 | VHM | AT | - | 3xD |
| KOD: ELT-W.6041100X EAN: 5907324005283 |
11 | 12 | 102 | 55 | VHM | AT | - | 3xD |
| KOD: ELT-W.6041200X EAN: 5907324005290 |
12 | 12 | 102 | 55 | VHM | AT | - | 3xD |
| KOD: ELT-W.6041400X EAN: 5907324013837 |
14 | 14 | 107 | 60 | VHM | AT | - | 3xD |
| KOD: ELT-W.6140300M EAN: 5907324005306 |
3 | 6 | 66 | 28 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140300X EAN: 5907324005313 |
3 | 6 | 66 | 28 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140330X EAN: 5907324013790 |
3.3 | 6 | 66 | 28 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140330M EAN: 5907324005320 |
3.3 | 6 | 66 | 28 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140400M EAN: 5907324005337 |
4 | 6 | 74 | 36 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140400X EAN: 5907324005344 |
4 | 6 | 74 | 36 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140420X EAN: 5907324005351 |
4.2 | 6 | 74 | 36 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140430M EAN: 5907324005368 |
4.3 | 6 | 74 | 36 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140500M EAN: 5907324005375 |
5 | 6 | 82 | 44 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140500X EAN: 5907324005382 |
5 | 6 | 82 | 44 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140510M EAN: 5907324005399 |
5.1 | 6 | 82 | 44 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140520M EAN: 5907324005405 |
5.2 | 6 | 82 | 44 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140520X EAN: 5907324005412 |
5.2 | 6 | 82 | 44 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140550M EAN: 5907324005429 |
5.5 | 6 | 82 | 44 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140550X EAN: 5907324005436 |
5.5 | 6 | 82 | 44 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140600M EAN: 5907324005443 |
6 | 6 | 82 | 44 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140600X EAN: 5907324005450 |
6 | 6 | 82 | 44 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140650X EAN: 5907324005467 |
6.5 | 8 | 91 | 53 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140680M EAN: 5907324005474 |
6.8 | 8 | 91 | 53 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140680X EAN: 5907324005481 |
6.8 | 8 | 91 | 53 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140700M EAN: 5907324005498 |
7 | 8 | 91 | 53 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140700X EAN: 5907324005504 |
7 | 8 | 91 | 53 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140750X EAN: 5907324005511 |
7.5 | 8 | 91 | 53 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140800M EAN: 5907324005528 |
8 | 8 | 91 | 53 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140800X EAN: 5907324005535 |
8 | 8 | 91 | 53 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140820M EAN: 5907324005542 |
8.2 | 10 | 103 | 61 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140850M EAN: 5907324005559 |
8.5 | 10 | 103 | 61 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140850X EAN: 5907324005566 |
8.5 | 10 | 103 | 61 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140880X EAN: 5907324005573 |
8.8 | 10 | 103 | 61 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140900M EAN: 5907324005580 |
9 | 10 | 103 | 61 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6140900X EAN: 5907324005597 |
9 | 10 | 103 | 61 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140910X EAN: 5907324005603 |
9.1 | 10 | 103 | 61 | VHM | AT | - | 5xD |
| KOD: ELT-W.6140950M EAN: 5907324005610 |
9.5 | 10 | 103 | 61 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141000M EAN: 5907324005627 |
10 | 10 | 103 | 61 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141000X EAN: 5907324005634 |
10 | 10 | 103 | 61 | VHM | AT | - | 5xD |
| KOD: ELT-W.6141020M EAN: 5907324005641 |
10.2 | 12 | 118 | 71 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141020X EAN: 5907324005658 |
10.2 | 12 | 118 | 71 | VHM | AT | - | 5xD |
| KOD: ELT-W.6141030M EAN: 5907324013813 |
10.3 | 12 | 118 | 71 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141050M EAN: 5907324005665 |
10.5 | 12 | 118 | 71 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141100M EAN: 5907324005672 |
11 | 12 | 118 | 71 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141100X EAN: 5907324005689 |
11 | 12 | 118 | 71 | VHM | AT | - | 5xD |
| KOD: ELT-W.6141150M EAN: 5907324005696 |
11.5 | 12 | 118 | 71 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141180M EAN: 5907324005702 |
11.8 | 12 | 118 | 71 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141200M EAN: 5907324005719 |
12 | 12 | 118 | 71 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141200X EAN: 5907324005726 |
12 | 12 | 118 | 71 | VHM | AT | - | 5xD |
| KOD: ELT-W.6141250M EAN: 5907324005733 |
12.5 | 14 | 124 | 77 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141300M EAN: 5907324005740 |
13 | 14 | 124 | 77 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141350M EAN: 5907324005757 |
13.5 | 14 | 124 | 77 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141400M EAN: 5907324005764 |
14 | 16 | 133 | 83 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141500M EAN: 5907324005771 |
15 | 16 | 133 | 83 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141600M EAN: 5907324005788 |
16 | 16 | 143 | 93 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141650M EAN: 5907324005795 |
16.5 | 18 | 143 | 93 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141700M EAN: 5907324005801 |
17 | 18 | 143 | 93 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141750M EAN: 5907324143190 |
17.5 | 18 | 143 | 93 | VHM | AT | IK | 5xD |
| KOD: ELT-W.6141800M EAN: 5907324237417 |
18 | 18 | 143 | 93 | VHM | AT | IK | 5xD |
